Paper Trimmer

Designed to withstand high volume applications and will cleanly cut virtually all
flexible materials up to 3.0mm thickness. With the unique chromed steel twin
guide rails, silent glide action and all metal cutting head and end frames.
Screen-printed with a very useful 10mm grid, ‘A’ size indicators and two
additional metric / imperial scale bars.

Model                        RT12                       RT24                          RT36
Cut length                  305 mm                    610 mm                      914 mm
Overall length             470 mm                    778 mm                     1080 mm
Max. Cut thickness    3 mm                         3 mm                         2 mm
Weight                       4.8kg                        7.5kg                         12kg
Dimensions(mm)        470×380×90             80×380×95               1120×380×95

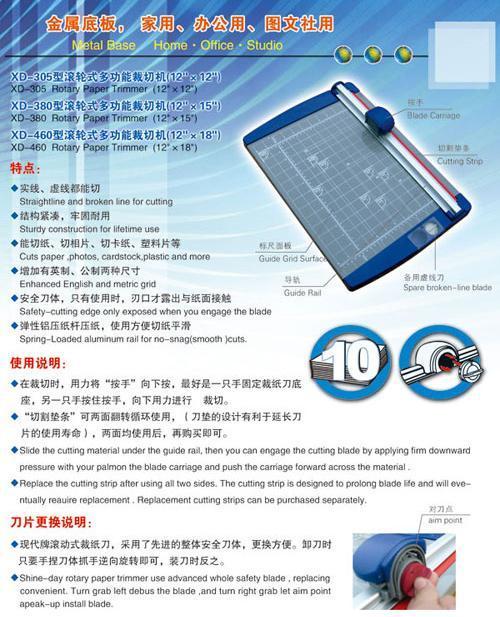

XD305

PC210

Cutting mode : Hob
The effective length of cutting : 350mm
Max. thickness of cutting: 2mm
Cutting Form : Manual
Size of Machine: 550x300mm

PC220

Cutting mode : Hob
The effective length of cutting : 600mm
Max. thickness of cutting: 2mm
Cutting Form : Manual
Size of Machine: 800x315mm

PC230

Cutting mode : Hob
The effective length of cutting : 970mm
Max. thickness of cutting: 2mm
Cutting Form : Manual
Size of Machine: 1200x420mm

PC240

Cutting mode : Hob
The effective length of cutting : 1250mm
Max. thickness of cutting: 2mm
Cutting Form : Manual
Size of Machine: 1460x330mm

PC200 series includes seven specifications (14 inch, 24 inch, 36inch, 48inch, 63inch, 71inch, 82inch)
and three colors (computer gray, navy blue and pitch black).
PC240(48 inch), PC260(63inch), PC270(71 inch) with stand Available.

Type	PC210(14 inch)	PC220(24 inch)	PC230(36 inch)	PC240(48 inch)	PC260(63inch)	PC270(71 inch)	PC280(82 inch)
Breadth	350mm	600mm	970mm	1250mm	1600mm	1800mm	2000mm
Measure	2.0mm	2.0mm	2.0mm	2.0mm	2.0mm	2.0mm	2.0mm
Tailor-desk area	550×300mm	800×315mm	1200×420mm	1460×330mm	1800×330	2000×330	2200×445mm
